Description

More precise than the DIN/ISO standard

+/- 3% trigger accuracy

Fine adjustment

Precise reading accuracy for a minimum of 5,000 tightening cycles

For controlled fastening in a clockwise direction

Double scale in Nm and lbf•ft divisions for precise adjustment

Includes micrometer scale with Nm divisions for precise fine adjustment

Large vision panel with the magnifying function optimises the readability

Quick-trigger mechanism produces a clear audible and tangible signal to indicate torque triggering

With exact gearing 36-teeth ratchet mechanism

Torque setting is quick and easy by turning the handle

Secure locking function within the handle

Two-component handle with a soft zone, is ergonomic in design and comfortable in the hand

Square drive in accordance with DIN 3120 - ISO 1174 with ball lock

including calibration declaration of conformity according to DIN EN ISO 6789:2003 - traceable to national standards

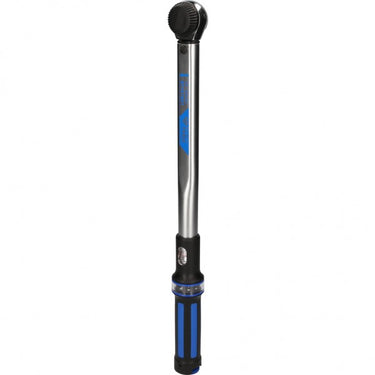

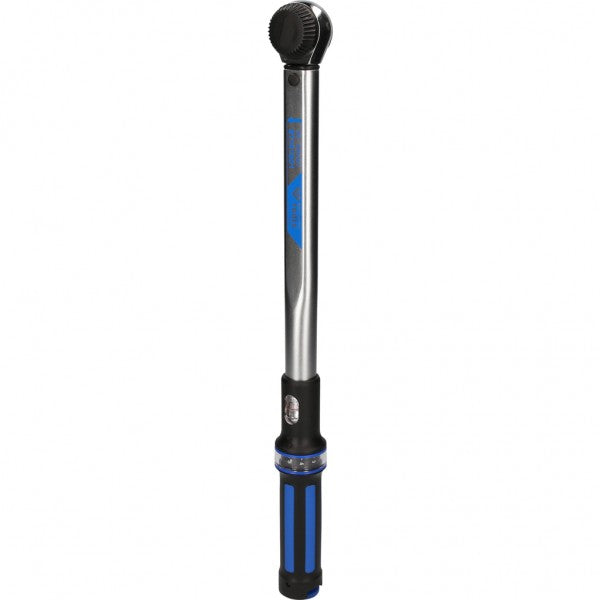

With this BRILLIANT TOOLS professional torque wrench BT141901, bolts, screws and nuts can be tightened in a controlled manner. Its application possibilities are very versatile. The exact setting of the desired torque is extremely simple and is easy to read on the scale integrated into the handle. Fine adjustments, thanks to the micrometre scale, can also be performed. This allows you to implement values such as 84 Nm. To adjust a setting, just undo the lock in the handle and turn it to the desired value, then lock it again. A wide variety of work on cars and vans can be done in the torque range between 20 - 200 Nm. The trigger mechanism, easy to hear and feel, signifies that the set torque has been reached. Its 1/2" head can be reset, making it suitable for right and left handed threads.



The robustness and reliability of this professional torque wrench has proven its worth for professional mechanics over many years and is therefore ideal for hobby mechanics with very high demands on their tool.

Properties

Actuation accuracy: +/-3%

Drive in inch: 1/2"

Construction: one-armed lever

Handle: 2 component handle

Norm: DIN 3120, ISO 1174

Tooth: 36
